Smoke Drop

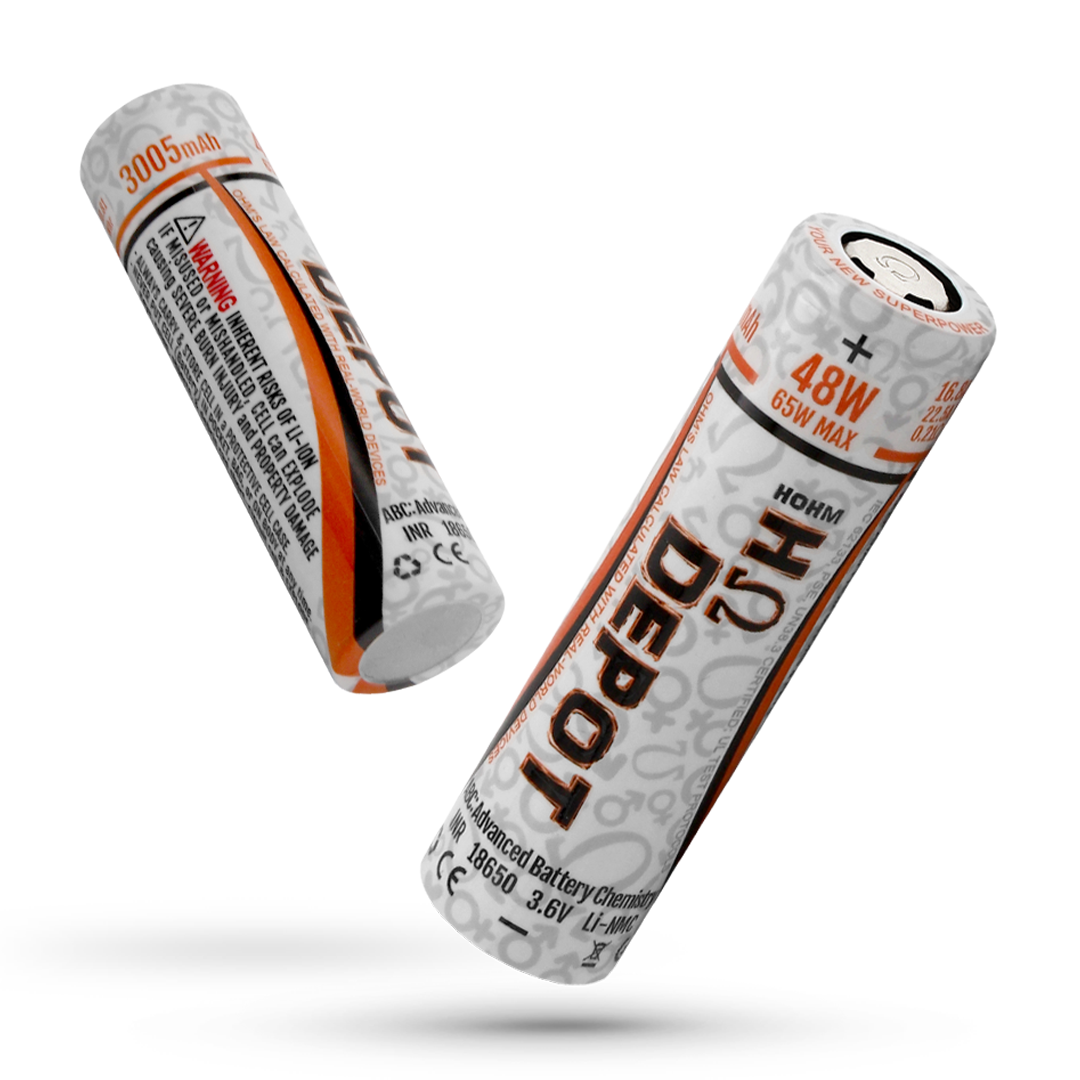

Hohm Depot 18650 (2)

Hohm Depot 18650 (2)

$25.00 USD
$25.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Pack Size: Two (2) Batteries
  • Capacity: 3005mAh
  • Max Charge Current:  22.5V
  • Continuous Discharge Rate: 16.8A
  • Energy Density (wt.): 221.06 Wh/kg
  • Energy Density (vol.): 653.5 Wh/l
  • Cycle Life Retention: 500 Cycles (75%)
  • Chemistry Type: DSP Li-NMC
  • PDF Snapshot: Brochure



Hohm DEPOT is tailor-made to push where other batteries fall. It focuses on maintaining everything one would expect of Hohm Tech cells while simultaneously reducing the cost per unit of Ah. R&D started in early 2020, with prototype testing by late 2020 and throughout 2021. With minor, mild, and unique formulation adjustments, Hohm DEPOT can confidently surpass other ≈3Ah (3000mAh) cells. A highly-positive result in the cell honing comes improved cycle life (via UL test standard). This occurred from simply switching from the QSP to DSP (Quad vs. Dual Stripping Process).

As for the nitty-gritty…these are rated at 3005mAh capacity, with a CDR of 16.8A, and 80oC | 3.2V cut-off limit (whichever occurs first) @ 22.5A. For EV and DC motor applications, the DEPOT cell handles repeated 28.4A loads @ 5s on, 30s off (Surge/Pulse). All ratings are subject to meet and/or exceed strict limitation policies set forth for DLr1, TID2, PVDL3, CLR4, mΩR5, and Temperature (°C). Hohm DEPOT is built from the DSP NMC chemistry formulation, with manganese inert compound replaced with additional proprietary levels of cobalt & nickel as well as added custom bonding agents to achieve unprecedented U.D.O.S. results. It is further enhanced with components from industry-leading manufacturers that give it the heartbeat of Hohm Tech.

Every Hohm Tech cell model has been tested and certified by UN38.3, EN62133, IEC62133 2nd Edition, and UL1642 accredited laboratories and testing facilities assigned by regulatory bodies. This includes MSDS, CE, ROHS, UN38.3, IEC, PSE, Specifications, and Air/Sea Transport certifications. We do not cut corners. We deliver what we promise… chart-topping performance, capacity, consistency, and safety.

To expound on safety:

  • modified cathode tag consisting of higher purity aluminum is utilized to aid in lowering internal resistance
  • updated poly seal with refined bitumen is installed in every cell to ensure excess pressure is controlled

** NOTICE: Hohm Tech does not manufacture batteries. These are made for and licensed to Hohm Tech Int’l achieving their requirements set forth.
** CAN BE CHARGED AT 3.6A. This is not a misprint. 3.6A as in THREEE POINT SIX-amp charging is possible, tested, proven, and approved within all strict safety protocols set by Indonesia Chemistry.
*** TESTING BEYOND TEMPERATURE. Hohm Tech cells utilize both static & dynamic testing that includes but not limited to: density loss, thermal distribution, volt drop limiters, cycle life retention, and temperature. These tests are imperative to achieve true cell performance, longevity, and overall quality.

  1. Thermal Image Distribution
  2. Pulse Voltage Drop Limitation
  3. Cycle Life Retention
  4. Resistance Retentivity Pre|Post
  5. Pulse & Peak is applicable to Dynamic EV Systems ONLY and rated @ ≤5 SEC ON / ≥30 SEC OFF
